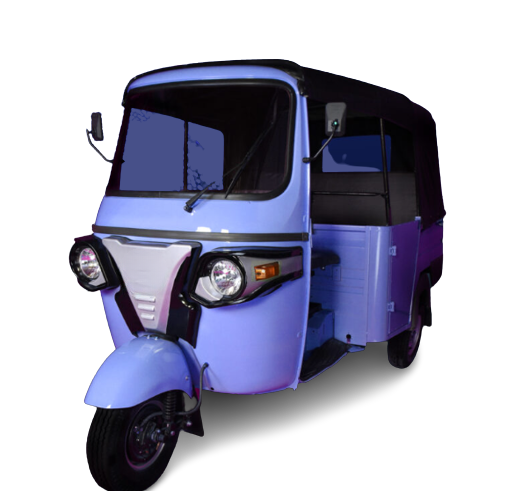

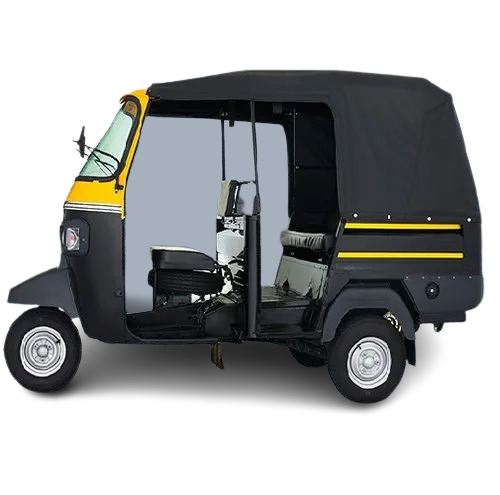

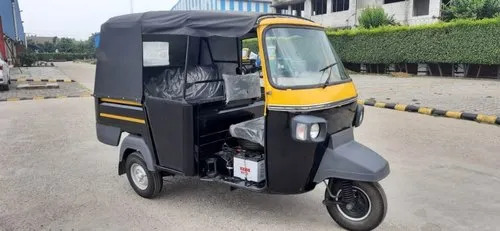

Top Sale A three-wheeled electric tricycle designed to carry passengers in electric power and efficient transport capabilities

Sold by bharathiauto

Price in USD
$4,200.00 .Per Piece/Pieces
Minimum Order Qty : 3 pieces
Material Type : steel aluminium
Size :
Color : white, blue
Price Term : FOB
Payment method : TT
Shipping Port : nhava sheva
Packing Type : pallet
Shelf Life :
Other Specification :
Brand Name :buyer brant
Shipping Time :20 Days

Key attributes

Industry-specific attributes

Power
> 1000W

Voltage
48V

Other attributes

Maximum Speed
50-70Km/h

Charge Time(h)
3-5h

Grade Ability
15-20°

Driving Mileage
≥90km

Use For
Passenger

Body Type
Closed

Certification
DOT

Passengers
3

Brake System
Front drum+Rear drum

Tire Size
4.00

Curb Weight
≥500kg

Payload Capacity
300-400kg

Driving Type
Electric

Brand Name
BHARATHI AUTO

Place of Origin
Telangana, India

Product name
Passenger Electric Auto tuk tuk

Website
www.bharathiauto.com

Battery
Lithium Battery

Max speed(km/h)
55

Motor
PMSM

Range
110

Rated Power
5000W (5kW)

Turn Radius
3.6 m

Transmission Type
Direct couple with motor

GVW
680

Packaging and delivery

Packaging Details
EXPORT STEEL FRAME IN SEMI KNOCKED DOWN CONDITON

Port
Nhava Sheva Port



Product specification

Metro XL Auto (Electric)
Metro XXL Auto (Electric)
Loader 600 (Electric)
Vehicle Category
L5N
L5N
L5N
Battery Type
LiFePo4
LiFePo4
LiFePo4
Battery Capacity
48V, 200Ah(10Kw)
48V, 200Ah(10Kw)
48V, 200Ah(10Kw)
Charging time
4 Hrs @ Standard Conditions
4 Hrs @ Standard Conditions
4 Hrs @ Standard Conditions
Battery Life
 2000 cycles
 2000 cycles
 2000 cycles
Peak Power
9.5Kw
9.5Kw
9.5Kw
Peak Torque
45 Nm
45 Nm
45 Nm
Transmission Type
Direct Drive
Direct Drive
Direct Drive
Top Speed
50kmh
50kmh
50kmh
Certified range
240 km
145 km
145 km
Typical Driving Range
210 km
132 km
132+/- 5 km
Gradability
16%
16%
 16%
Dimensions-Length x Width x Height(mm)
2735 x 1300 x l700mm
2980 x 1450 x l840mm
3447mm x 1510mm x 1710mm
Wheel Base
2l40mm
2l00mm
2380mm
Ground clearance
l70mm
245mm
220mm
Rear track
l220mm
l220mm
l260mm
Turning radius
3.05m
3.05m
3.05m
Vehicle Kerb weight
420 Kg
460 Kg
445 kg
Vehicle GVM
920 kg
960 kg
995kg
